    HomeProductsUnmanned ForkliftLaser SLAM Reach Truck AGVLaser SLAM Reach Truck AGV
    Laser SLAM Front-Shift AGV
    Laser SLAM Front-Shift AGV

    Laser SLAM Reach Truck AGV

    Laser SLAM Reach Truck AGV

    Parameter:

    Standard chassis, suitable for single and double-sided pallets, forklift-style handling and stacking of goods; supports customization of second/third-level mast and fork dimensions, with a maximum lifting height of 6m. Compatible with load carriers, ideal for medium-height stacking scenarios in narrow aisles.
    Laser navigation, high positioning accuracy.
    Flexible motion control, with a maximum operating speed of up to 1.2 m/s.
    Smart/independent power management, autonomous charging when low on power, maintenance-free lithium battery, safe and pollution-free.
    Multiple safety protections, including laser anti-collision, cargo detection, emergency stop button, and audible alarms.
    Standard pallet handling (1200*800, 1200*1000), with customizable load capacity for goods transportation.
    Equipment Status Indication: The device status is displayed via a touchscreen and three-color indicator lights.
    Wireless network communication: supports WIFI network communication and seamless roaming, ensuring uninterrupted operation within the network coverage area.

    Features:

    Inquire Now

    WhatsApp

    Share :

    Product Advantages

    • 01

      True laser SLAM

    • 02

      Full protection

    • 03

      Flexible scheduling

    • 04

      Strong commonality

    • 05

      Independent charging

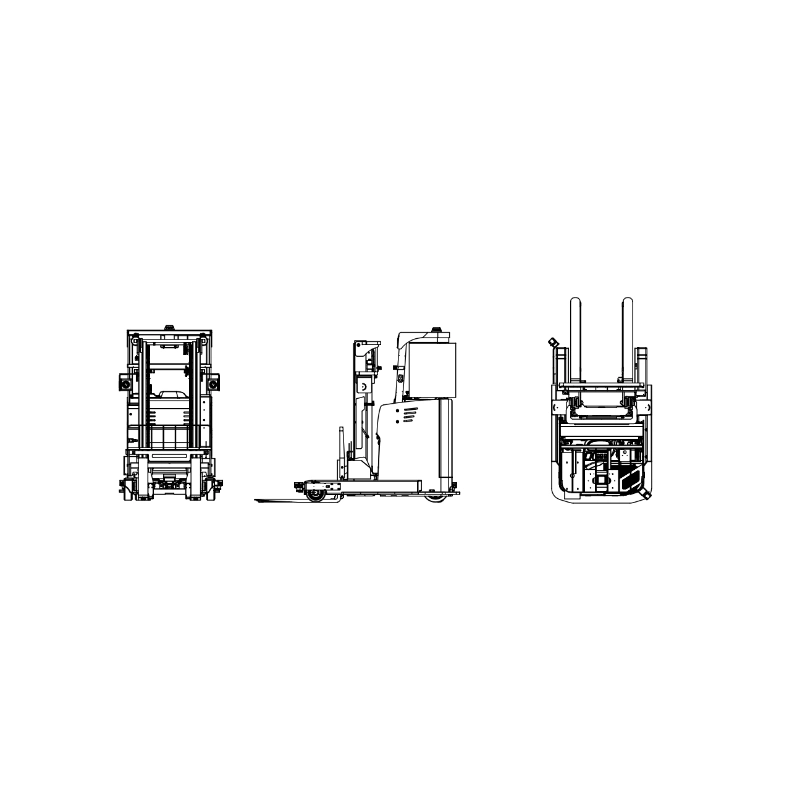

    Product Appearance

    Product Specifications

    Basic ParametersStandard lifting height（mm）3000（customizable）
    Rated load capacity（kg)2000
    Dimensions (length x width x height)(mm)2336*1170*2142
    Right angle turning channel（mm)（1200*1000mm,Standard Sichuan style tray）3600mm
    Navigation methodLaser navigation
    positioning accuracy
    （mm)    		±10
    Basic ParametersNon contact sensorsSecurity Protection Lidar
    Contact sensorsconductive rubber
    Sound and light warning templateSound and light prompts
    Basic Parameterswireless networkIndustrial grade WIFI
    system interfaceReserved interfaces for MES, WMS, ERP, and central scheduling system
    Basic ParametersFork length
    (mm)    		1050(customizable)
    Fork height after lowering
    (mm)    		60
    Ground clearance of door frame
    (mm)    		82
    driving speed
    (m/s)(no-load
    ）    		1.2
    walking styleSteering wheel drive, forward/backward, curved turns
    gradability3/5%
    Basic ParametersBattery Typelithium iron phosphate
    battery voltage48V
    battery capacity300Ah(customizable)
    Charging methodOnline autonomous charging/manual charging

    Frequently Asked Questions

    • Q

      Generally, how long does it take to charge the AGV's battery, and how long can it be used after a full charge?

      A
      The charging time is generally about 2 hours, with a charge-discharge ratio of 1:4. A full charge can last for 6 to 8 hours, which is related to the battery capacity. Currently, the battery capacity we choose is also based on the actual application needs of most customers, and it should also meet your usage requirements.
    • Q

      Is the AGV's requirement for the ground high?

      A
      The AGV has no special requirements for the ground. It only needs the ground bearing capacity to meet the usage requirements, and the ground should be flat, free of slopes and gaps. For the actual on-site conditions, we suggest an on-site inspection to ensure better adaptation.
    • Q
