    Stacker Laser Navigation AGV

    Stacker Laser Navigation AGV

    Parameter:

    • Standard vehicle body, applicable to single-sided pallets, realizing fork-type handling and stacking of goods; supporting customized fork sizes with a maximum lifting height of 3.0m. It is suitable for warehousing scenarios with light materials, low shelves and narrow passages.
    • Laser navigation with high positioning accuracy.
    • Flexible motion control, with a maximum running speed of up to 1.2m/s.
    • Intelligent/independent power management, featuring automatic charging when low on power, maintenance-free lithium battery, which is safe and pollution-free.
    • Multiple safety protections, including laser anti-collision, cargo detection, emergency stop button, sound alarm and other safety protection measures.
    • Standard pallet handling (1200*800, 1200*1000), and the cargo handling load can be customized.
    • Equipment status indication: Equipment status is prompted through a touch screen and three-color indicator light.
    • Wireless network communication: Supporting WIFI network communication and seamless roaming, enabling barrier-free operation in network-covered areas.

    Features:

    Inquire Now

    WhatsApp

    Share :

    Product Advantages

    • 01

      True laser SLAM

    • 02

      Full protection

    • 03

      Flexible scheduling

    • 04

      Strong commonality

    • 05

      Independent charging

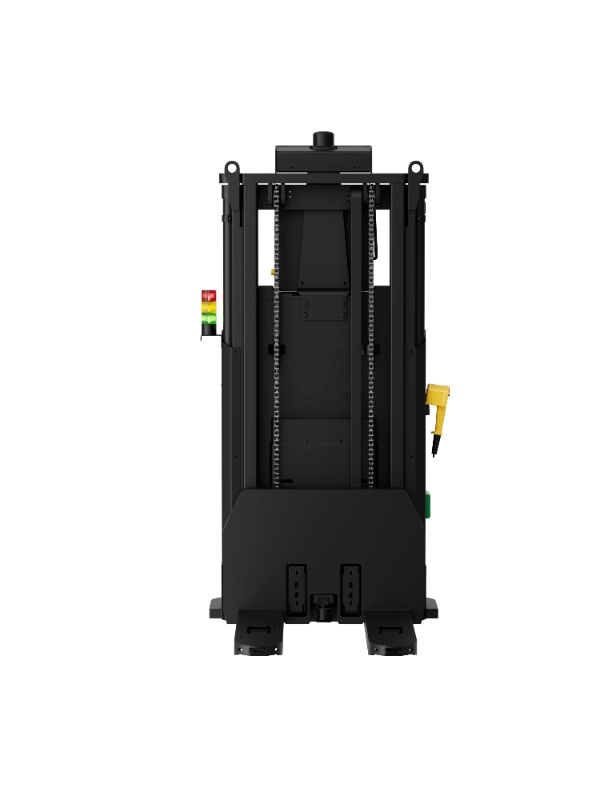

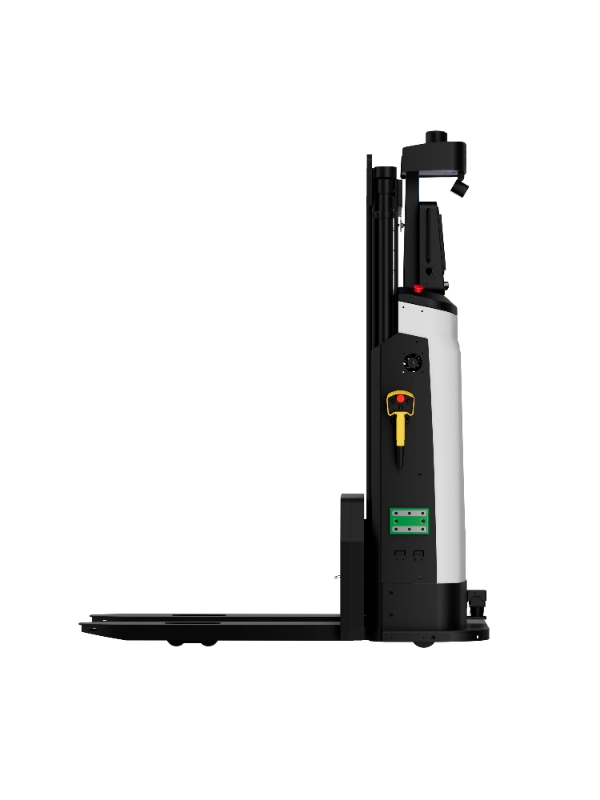

    Product Appearance

    Product Specifications

    Basic ParametersStandard lifting height（mm）1600（customizable）
    Rated load capacity（kg)1400
    Dimensions (length x width x height)(mm)1715*1008*1950
    Right angle turning channel（mm)（1200*1000mm,Standard Sichuan style tray）2400mm
    Navigation methodLaser navigation
    positioning accuracy
    （mm)    		±10
    Basic ParametersNon contact sensorsSecurity Protection Lidar
    Contact sensorsconductive rubber
    Sound and light warning templateSound and light prompts
    Basic Parameterswireless networkIndustrial grade WIFI
    system interfaceReserved interfaces for MES, WMS, ERP, and central scheduling system
    Basic ParametersFork length
    (mm)    		1150(customizable)
    Fork height after lowering
    (mm)    		90
    Ground clearance of door frame
    (mm)    		30
    driving speed
    (m/s)(no-load
    ）    		1.2
    walking styleSteering wheel drive, forward/backward, curved turns
    gradability3%
    Basic ParametersBattery Typelithium iron phosphate
    battery voltage24V
    battery capacity200Ah(customizable)
    Charging methodOnline autonomous charging/manual charging

    Frequently Asked Questions

    • Q

      How long is the service life of an AGV?

      A
      Our AGVs can achieve a service life of more than 10 years under normal operation.The vehicle bodies are developed in cooperation with top forklift manufacturers both at home and abroad.We adopt high-standard key components, mostly from well-known imported brands.For the core navigation sensors, our standard configuration is SICK or Pepperl+Fuchs.
    • Q

      What is the positioning accuracy of the AGV?

      A
      Under normal conditions, the positioning accuracy can reach ±10 mm.This depends on the actual operating environment of the AGV. Factors such as lighting conditions and landmarks will affect accuracy.In an ideal environment, our AGV can even achieve precision up to ±5 mm.
    • Q

      What scenarios can AGVs be applied to?

      A
      Working scenarios include indoor production line material delivery, warehouse storage and transfer, stacking, and goods dispatch.It basically covers the entire warehousing process.We also provide customized solutions based on different application scenarios.
    • Q

      What should be paid attention to in the daily protection and maintenance of the AGV?

      A
      - Regularly inspect the AGV operation panel to ensure all buttons on the panel can work normally. - Regularly check whether the AGV forklift sensors can work normally. - Regularly inspect the antenna communication to keep the communication normal. - It is strictly prohibited to expose to rain or contact with corrosive objects. - Please turn off the power supply when not in use for a long time. Chinese Contrast
    • Q

      What are the communication methods of the AGV?

      A
      Typically, industrial WIFI is adopted. For example, most military enterprises use QR codes or optical communication, and 5G networks are usually adopted when cooperating with communication operators. We can meet various communication needs, serving a wide range of customer groups.
